Foresight: Failure Detection for Long-Horizon Robotic Manipulation with Action-Conditioned World Model Latents

Zhang, Haoran; Lu, Yifu; Wang, Boyang; Kang, Xuhui; Kuo, Yen-Ling; Cheng, Zezhou; Wang, Mengdi; Jenkins, Odest Chadwicke

Foresight: Failure Detection for Long-Horizon
Robotic Manipulation with Action-Conditioned
World Model Latents

Haoran Zhang^1,* Yifu Lu^2,* Boyang Wang³ Xuhui Kang³ Yen-Ling Kuo³ Zezhou Cheng³ Mengdi Wang² Odest Chadwicke Jenkins^1,†

¹University of Michigan ²Princeton University ³University of Virginia
^*Equal contribution ^†Corresponding author

Under Review

Paper (TBD) Code (TBD) Video

Failure Detection Long-Horizon Manipulation World Models Conformal Prediction V-JEPA 2-AC

Abstract

Long-horizon tasks are common in real-world robotic deployments, yet failure detection for such tasks remains underexplored. Detecting failures in long-horizon robotic tasks is particularly challenging because failure onset is often ambiguous and dense temporal annotations are typically unavailable. We present Foresight, a failure detection framework that monitors manipulation trajectories using latent representations from an action-conditioned world model. Foresight is trained using only final task-level success or failure labels. By leveraging predictive world-model embeddings, our method provides a unified framework for failure detection across different policies. We further use functional conformal prediction (FCP) to calibrate detection thresholds adaptively. We evaluate Foresight with state-of-the-art vision-language-action policies in simulation on LIBERO-Long, ManiSkill-Long, and BEHAVIOR-1K, compare it against state-of-the-art failure detection methods, and validate it on real robots with three long-horizon tasks on ReactorX and one task on Franka arm. Our results suggest that action-conditioned world-model embeddings provide a scalable representation for reliable failure monitoring in long-horizon manipulation.

Video Presentation

Contributions

We propose Foresight, a failure detection framework for long-horizon robotic manipulation that feeds latent representations from an action-conditioned world model — consisting of a frozen visual encoder and a trained AC predictor — into a causal Transformer failure detector.
We show that action-conditioned world model embeddings enable failure detection with supervision from only final task success/failure labels across different VLA policies, and incorporate functional conformal prediction to adaptively calibrate detection thresholds for reliable long-horizon failure detection.
We provide a comprehensive evaluation across diverse manipulation tasks, policies, robotic embodiments, simulation benchmarks (LIBERO-Long, ManiSkill-Long, BEHAVIOR-1K), and real-world experiments, demonstrating the effectiveness of Foresight against state-of-the-art failure detection methods.

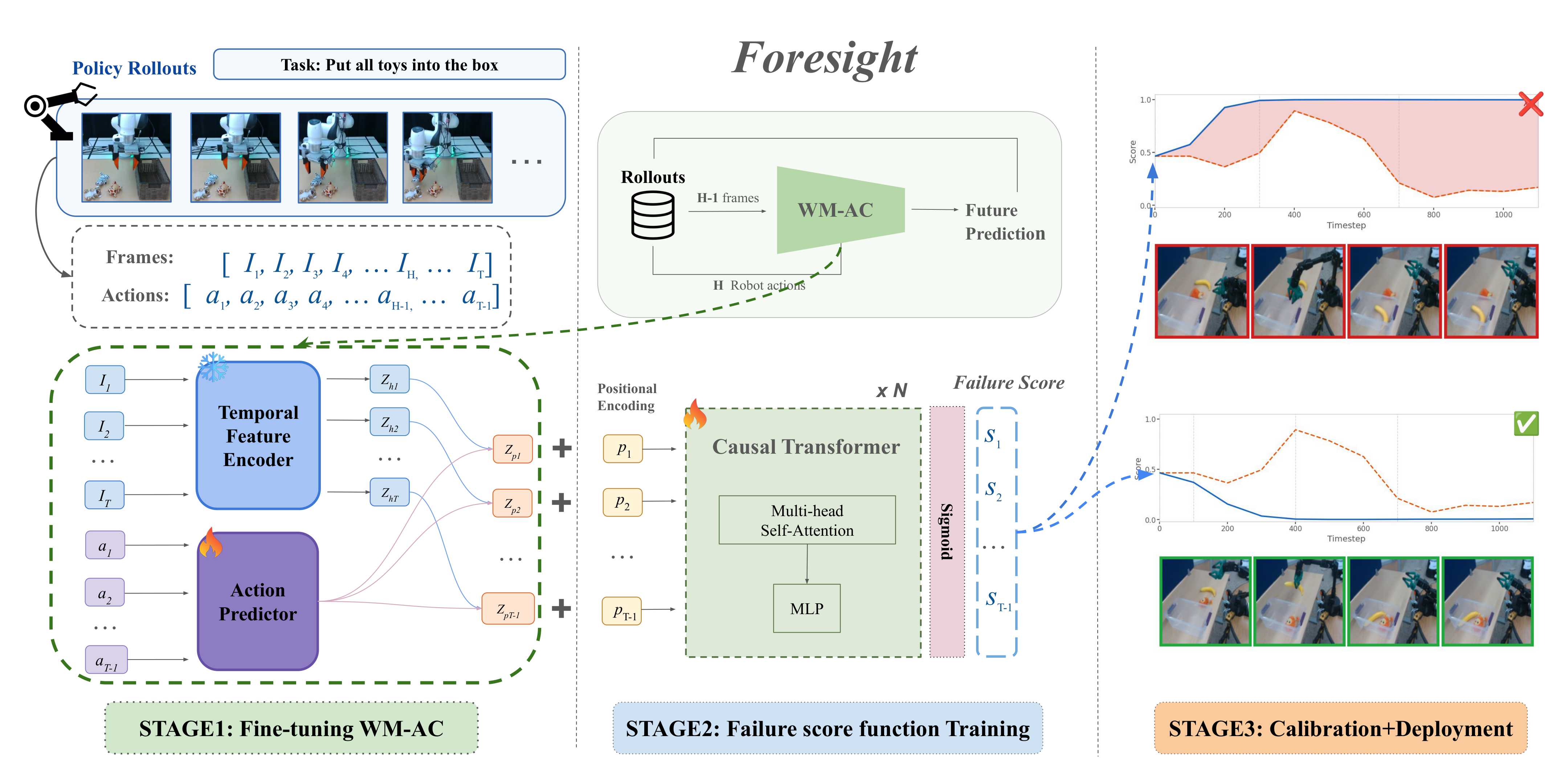

Method

Foresight consists of three stages: fine-tuning an action-conditioned world model, training a causal Transformer failure detector, and calibrating with functional conformal prediction for deployment.

Stage 1

Fine-tune WM-AC

We freeze the visual encoder of the pretrained V-JEPA 2-AC (ViT-Giant) and train the action-conditioned predictor from scratch on robot rollouts. The predictor learns to predict future latent states conditioned on the policy's action chunks.

Stage 2

Train Failure Detector

At each replanning step the world model produces a hidden latent z^h (current observation) and a predicted latent z^p (expected under the next action chunk). A causal Transformer aggregates these over time, outputting a per-step failure score s_t trained on trajectory-level labels only.

Stage 3

Calibrate & Deploy

Functional conformal prediction (FCP) constructs a time-varying threshold δ_t from held-out successful rollouts, guaranteeing the false positive rate is controlled at level α. A failure alarm fires the first time s_t ≥ δ_t.

Evaluation Benchmarks

We evaluate across four settings spanning 253 to 8,557 simulation steps, multiple robot embodiments, and both simulation and real-world deployments.

LIBERO-Long

Tasks: 10 tabletop tasks Robot: Franka Avg. steps: 253 Policies: OpenVLA, π₀-FAST

ManiSkill-Long

Tasks: 4 compositional tasks Robot: Franka Avg. steps: 1,484 Policies: π₀-FAST

BEHAVIOR-1K

Tasks: 4 household tasks Robot: R1Pro (mobile) Avg. steps: 8,557 Policies: revised π₀.₅

Real-World Exp.

Tasks: 4 tasks Robots: ReactorX, Franka Avg. steps: 1,175 Policies: ACT, π₀.₅, SmolVLA, GR00T N1.5

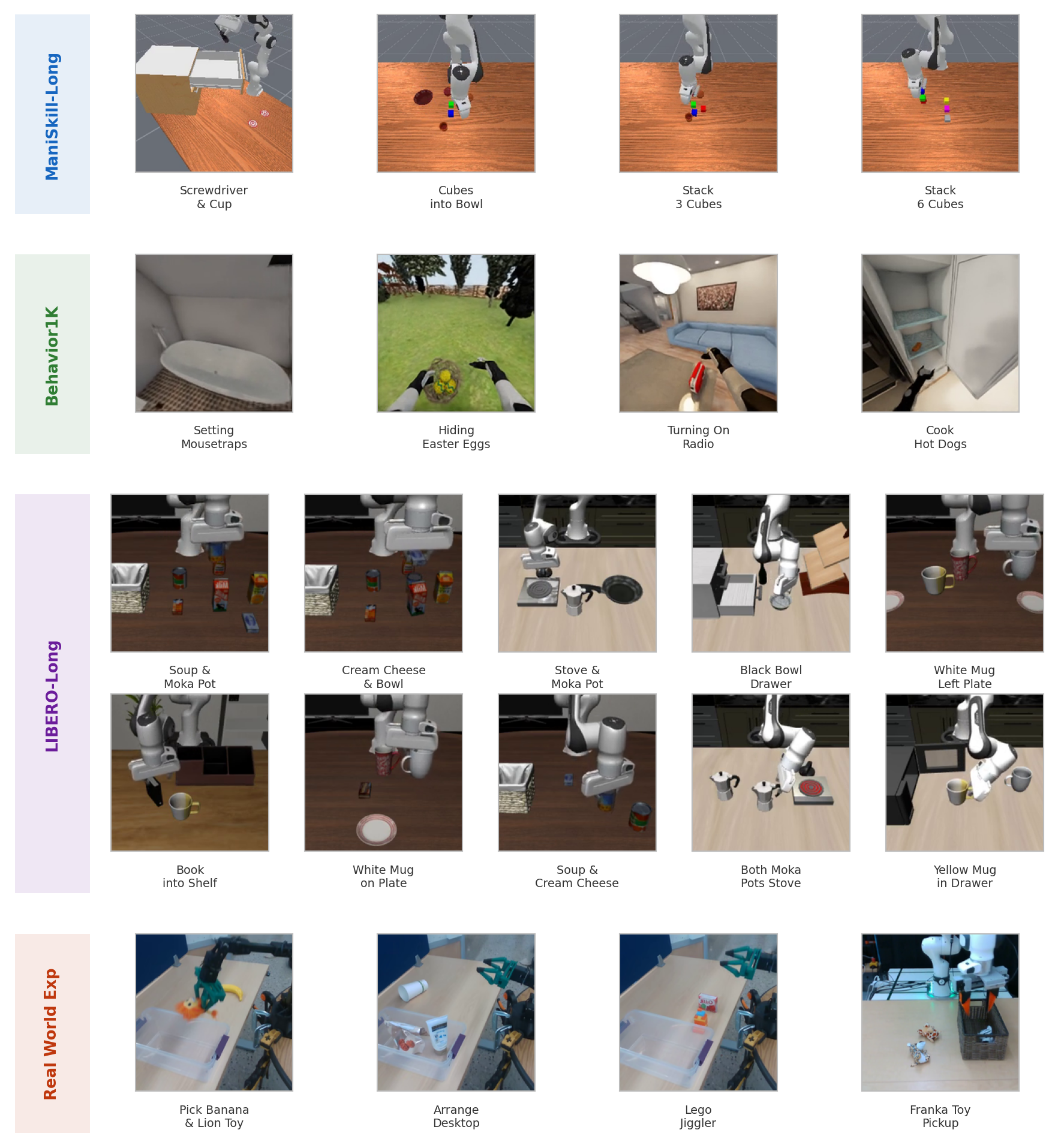

Task snapshots across all four evaluation benchmarks.

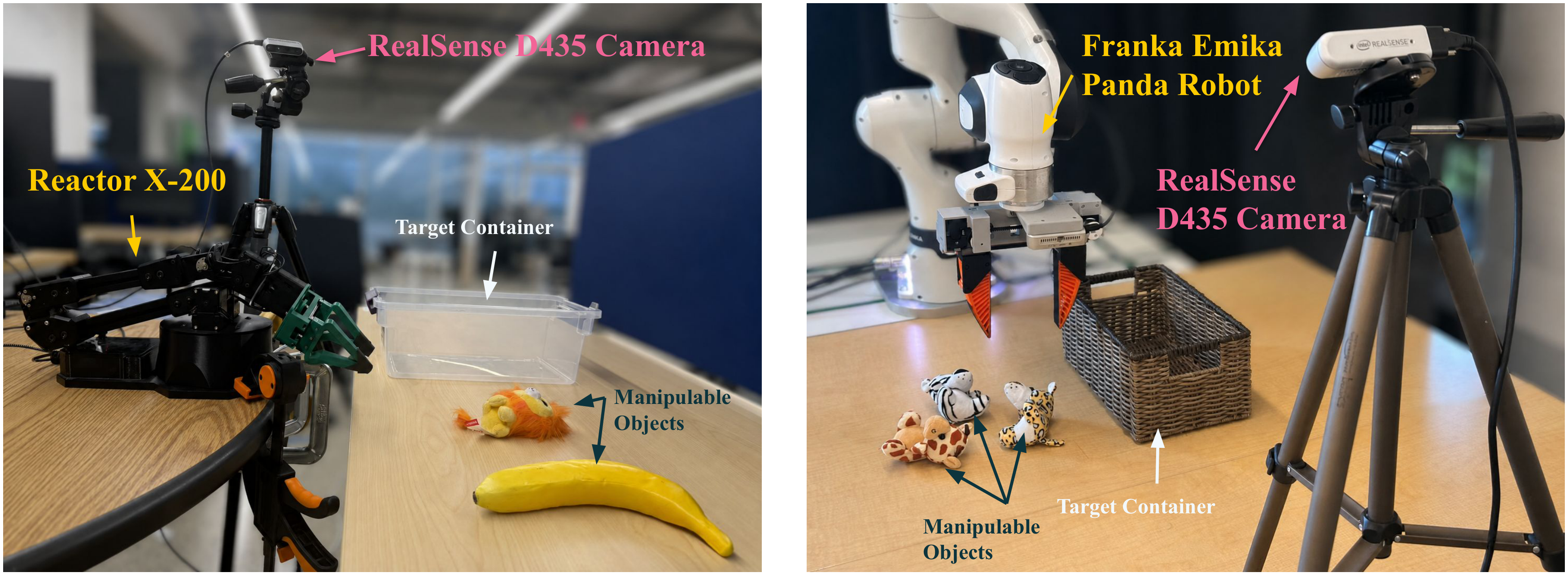

Real-Robot Setup

We validate Foresight on two robot platforms across four tasks, spanning three different VLA policies.

ReactorX-200

3 tabletop arrangement tasks with RealSense D435 camera. Evaluated with ACT, π₀.₅, and SmolVLA policies.

Franka Emika Panda

Toy pick-up task with RealSense D435 camera. Evaluated with GR00T N1.5 — cross-embodiment generalization test.

Qualitative Results

Each video shows the failure score s_t (blue) against the FCP threshold δ_t (red dashed). Frame borders are green when safe and red once the alarm fires. We show one true negative and one true positive per benchmark.

LIBERO-Long

True Negative — No Alarm

Task 0: "Put both alphabet soup and tomato sauce in the basket." Score stays below the threshold throughout — no false alarm raised.

True Positive — Alarm Raised

Task 5: "Pick up the book and place it in the caddy." Robot drops the book mid-execution; Foresight raises an alarm before episode terminates.

ManiSkill-Long

True Negative — No Alarm

Task 2 (Cubes into Bowl): Successful rollout — score stays below threshold.

True Positive — Alarm Raised

Task 3 (Stack 3 Cubes): Robot fails to stack the red cube onto the blue cube; Foresight detects the deviation early.

BEHAVIOR-1K

True Negative — No Alarm

Setting Mousetraps (~13,657 steps): Successful long-horizon rollout across the full trajectory without any false alarm.

True Positive — Alarm Raised

Cook Hot Dogs: Robot fails to grasp the first hot dog; Foresight raises an alarm early in the trajectory.

Real-World Exp.

True Negative — No Alarm

Successful real-robot rollout (ReactorX / ACT — Pick Banana & Lion Toy). Score stays below the FCP threshold throughout — no false alarm.

True Positive — Alarm Raised

Failing real-robot episode (ReactorX / ACT — Arrange Table). Robot fails to complete the arrangement; Foresight raises an alarm mid-execution.

Quantitative Results

Simulation Benchmarks

Method	LIBERO-Long		ManiSkill-Long		BEHAVIOR-1K
Method	ROC-AUC	BalAcc	ROC-AUC	BalAcc	ROC-AUC	BalAcc
Baselines
FAIL-Detect	0.90 ± 0.02	0.82 ± 0.06	0.71 ± 0.02	0.50 ± 0.01	0.54 ± 0.06	0.52 ± 0.01
SAFE-MLP	0.52 ± 0.01	0.50 ± 0.01	0.61 ± 0.02	0.53 ± 0.02	0.50 ± 0.00	0.50 ± 0.00
SAFE-LSTM	0.91 ± 0.02	0.88 ± 0.02	0.82 ± 0.01	0.74 ± 0.01	0.72 ± 0.02	0.64 ± 0.05
RND	0.90 ± 0.02	0.83 ± 0.04	0.83 ± 0.02	0.68 ± 0.18	0.65 ± 0.01	0.54 ± 0.04
Gauge	0.88 ± 0.01	0.81 ± 0.06	0.80 ± 0.02	0.77 ± 0.03	0.61 ± 0.03	0.60 ± 0.03
Foresight (ours)
Foresight-MLP	0.88 ± 0.01	0.80 ± 0.02	0.70 ± 0.03	0.71 ± 0.18	0.73 ± 0.02	0.56 ± 0.03
Foresight-LSTM	0.86 ± 0.02	0.89 ± 0.03	0.76 ± 0.00	0.79 ± 0.16	0.75 ± 0.04	0.75 ± 0.09
Foresight-Transformer	0.89 ± 0.02	0.94 ± 0.06	0.84 ± 0.03	0.80 ± 0.10	0.76 ± 0.02	0.78 ± 0.02

Table 2 — Rollout-level results. Bold blue = best; orange = second-best. Foresight-Transformer achieves best balanced accuracy on all three benchmarks, with a +0.14 BalAcc gain on BEHAVIOR-1K over the best baseline.

Real-World Experiments

Method	ReactorX / ACT	ReactorX / π₀.₅	ReactorX / SmolVLA	Franka / GR00T N1.5
Baselines (ROC-AUC)
FAIL-Detect	0.85 ± 0.07	0.64 ± 0.06	0.71 ± 0.05	0.88 ± 0.05
SAFE-MLP	0.89 ± 0.05	0.66 ± 0.36	0.64 ± 0.19	0.50 ± 0.10
SAFE-LSTM	0.70 ± 0.07	0.75 ± 0.14	0.43 ± 0.10	0.79 ± 0.10
RND	0.86 ± 0.04	0.78 ± 0.06	0.82 ± 0.03	0.64 ± 0.15
Foresight (ours)
Foresight-MLP	0.50 ± 0.00	0.55 ± 0.05	0.53 ± 0.22	0.59 ± 0.20
Foresight-LSTM	0.85 ± 0.05	0.85 ± 0.03	0.64 ± 0.08	0.66 ± 0.08
Foresight-Transformer	0.93 ± 0.01	0.87 ± 0.03	0.79 ± 0.09	0.89 ± 0.10

Table 3 — Real-world ROC-AUC. Foresight-Transformer achieves the best ROC-AUC in 3 of 4 settings and is the only method that consistently transfers across robot embodiments (ReactorX → Franka).

Cross-Policy Generalization

Can a detector trained on one policy detect failures in rollouts from a different policy? This tests whether Foresight captures execution-level failure cues rather than policy-specific artifacts.

Benchmark	Train policy	Test policy	ROC-AUC	BalAcc
LIBERO-Long	π₀-FAST	OpenVLA	0.64 ± 0.02	0.90 ± 0.01
Real-World	π₀.₅	ACT	0.94 ± 0.02	0.82 ± 0.08
Real-World	ACT	π₀.₅	0.56 ± 0.07	0.52 ± 0.03
Real-World	SmolVLA	ACT	0.92 ± 0.04	0.73 ± 0.07
Real-World	π₀.₅	SmolVLA	0.67 ± 0.02	0.62 ± 0.01

Table 4 — Cross-policy transfer. Transfer is feasible but asymmetric: π₀.₅ → ACT works well (0.94 ROC-AUC) because π₀.₅ rollouts cover broader behaviors including recovery trajectories, whereas ACT → π₀.₅ is harder as the ACT-trained detector has not seen recovery behavior.

BibTeX

@misc{zhang2026foresight,
  title         = {Foresight: Failure Detection for Long-Horizon Robotic Manipulation with Action-Conditioned World Model Latents},
  author        = {Zhang, Haoran and Lu, Yifu and Wang, Boyang and Kang, Xuhui and Kuo, Yen-Ling and Cheng, Zezhou and Wang, Mengdi and Jenkins, Odest Chadwicke},
  year          = {2026},
  eprint        = {2506.XXXXX},
  archivePrefix = {arXiv},
  primaryClass  = {cs.RO},
  url           = {https://arxiv.org/abs/2506.XXXXX}
}
